Nov 07 , 2024
Modified polyester aluminum enameled wire is an aluminum enameled wire that is coated with modified polyester resin on its surface through a special process treatment.
1. High heat resistance: The heat resistance of modified polyester resin is superior to that of ordinary polyester, allowing the enameled wire to work stably at higher temperatures.
2. Excellent electrical insulation performance: Provides better electrical insulation protection, reduces the risk of electrical faults, and ensures the safe operation of electrical equipment.
3. Good mechanical strength and wear resistance: Modified polyester resin enhances the mechanical strength and wear resistance of aluminum enameled wire, allowing it to withstand greater mechanical stress and wear, and extend its service life

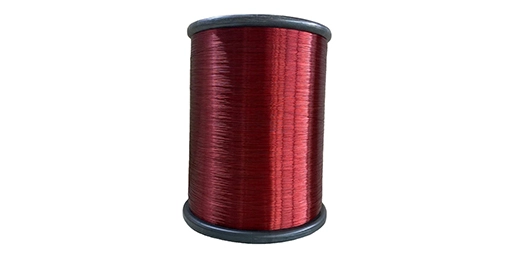

| Product Name | Polyester Enamel Aluminum wire | |||
| Type | QZL/130 | PEW/130 | QZL/155 | PEW/155 |
| Coating color | Red- brown | Yellow-brown | Black | |
| Size | 0.19-3.00MM | |||
| Coating thickness | -1 | -2 | ||
| Spool packing | PT15 | PT25 | PT35 | PT60 |
| Thermal class | B 130°C | F 155°C | ||
| Standard | GB 6109 | IEC 60317-0-3 | ||
The aluminium winding wire has high mechanical strength, good elasticity, adhesion, electrical performance and solvent resistance. It is mainly used in Class B motor coils of various ordinary motors, electrical appliances and household appliances
Modified polyester aluminum enameled wire has the following characteristics:
1. Heat resistance level improvement: The modified polyester aluminum enameled wire has a higher heat resistance level, usually up to 155 ℃.
2. High frequency and low loss: This type of enameled wire is particularly suitable for high-frequency circuits and has a lower dielectric loss factor (DF)
3. Excellent mechanical performance: This means that it can resist mechanical stresses such as tension, bending, and vibration during use, and is not prone to fracture or damage.
4. Good elasticity and scratch resistance: The paint film is not easily broken or peeled off due to force, and can also resist possible mechanical wear during equipment operation.
5. Excellent adhesion: There is strong adhesion between the paint film and the aluminum conductor, preventing the occurrence of short circuits.
