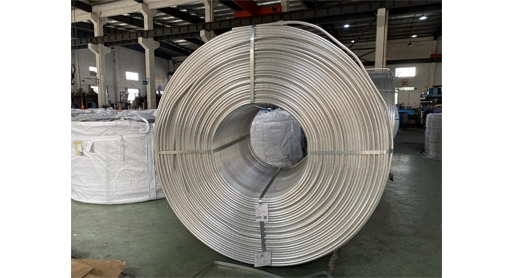

Copper-clad aluminum annealed wire is a type of conductive material made by combining copper and aluminum, integrating the advantages of both materials. In this composite, aluminum serves as the core, with a thin layer of copper wrapped around it. Through this structure, it combines the excellent electrical conductivity of copper with the lightweight characteristics of aluminum. “Annealing” refers to a heat treatment process that this material undergoes during production, which is known as annealing.
| Technical Data | Clading Type | Electroplating Type | ||||
| 10H | 10A | 15H | 15A | H | A | |
| SIZE (MM) | 1.00-5.00 | 1.00-5.00 | 1.00-5.00 | 1.00-5.00 | 1.00-5.00 | 1.00-5.00 |
| Copper contenct (By weight) | 25-31 | 25-31 | 32-40 | 32-40 | 5-10 | 5-10 |
| Conductivity at 20 ℃ | 62 | 62 | 64 | 64 | 60 | 60 |
| DC Resistivity (Ω.mm2/M) | 0.02743 | 0.02743 | 0.02676 | 0.02676 | 0.02756 | 0.02756 |
| Tensile strength (Mpa) | ≥150 | ≥110 | ≥150 | ≥110 | ≥150 | ≥110 |
| Elongation (%) | ≥1 | ≥8 | ≥1 | ≥8 | ≥1 | ≥8 |
| Density (g/cm³） | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 | 2.85 |
| Note: This product can be customized according to customer requirements, with a maximum copper content of 60%. | ||||||
1. Good conductivity: The copper layer of copper coated aluminum wire, provides good conductivity, making the copper clad aluminum annealing wire suitable for applications that require good electrical conductivity.
2 Lightweight: The aluminum core makes the overall material lighter than pure copper, helping to reduce the weight of the final product.
3. cost-effectiveness: Copper clad aluminum annealing wire is more economical than all copper wire because aluminum is cheaper than copper and the copper layer is thinner.
4. Good flexibility and plasticity: The annealing process improves the flexibility and plasticity of the material, making it easier to process and form.

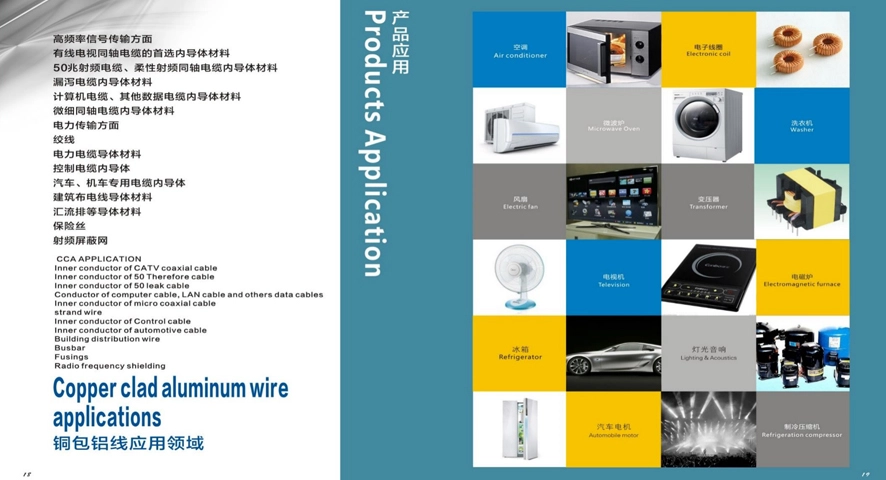

5. Wide applicability: Due to its comprehensive performance, copper clad aluminum annealing wire can be used in various applications, including power transmission lines, cables, transformers, motor windings, etc
