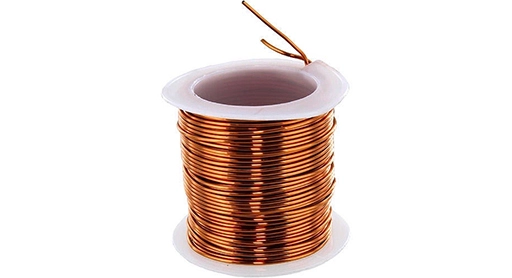

Modified polyester enameled copper wire belongs to Class F and is widely used in the windings of Class B and Class F motors. It has good mechanical properties and high heat resistance, and can be wound with a high-speed winding machine. However, the heat resistance, impact resistance, and moisture resistance of polyester enameled copper wire are poor.
| Type | Polyester | Modified Polyester | Polyurethane | Polyesterimide | Polyamide-imide | Polyamide |
| Code | PEW, QZ | PEW, QZ | UEW, QA | EIW, QZY | EI/AIW, QZY/XY | AIW, QXY |
| Thermal Class | Class B, 130°C | Class F, 155°C | Class F, 155°C | Class H, 180°C | Class H, 200°C | Class L, 220°C |
| Insulation thickness | Grade 1, 2, 3 | |||||
| Standard | IEC 60317, NEMA MW, JIS | |||||
| Characteristics | Good heat resistance and mechanical strength. LOW cost. | High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance | Solderability (no need to remove the insulation). High frequency resistance and dyeability | Good thermal shock resistance and refrigerant resistance. Excellent chemical resistance, abrasion resistance | More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance | Highest heat class High heat resistance, good solvent and refrigerant resistance |
Modified polyester enameled copper wire is an electromagnetic wire mainly used for winding electrical equipment such as motors, transformers, and solenoid valves.
1. Good electrical insulation performance with Rongda enameled copper wire
2. High thermal stability
3. Good mechanical strength and wear resistance
4. Chemical stability
