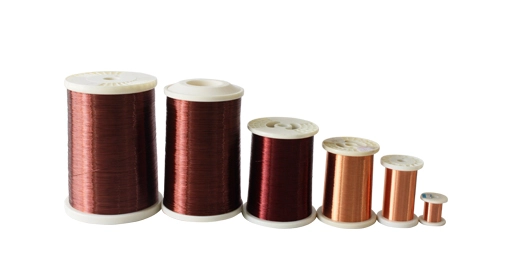

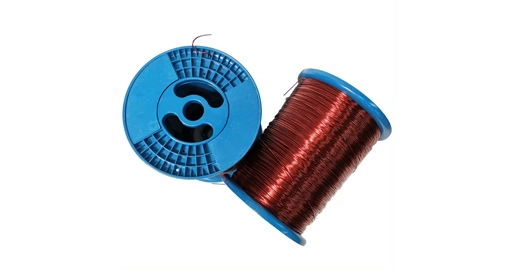

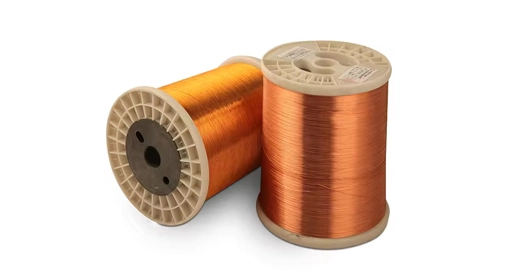

Polyesterimide ECCA wire QZY/180 type 0.13-1.30mm

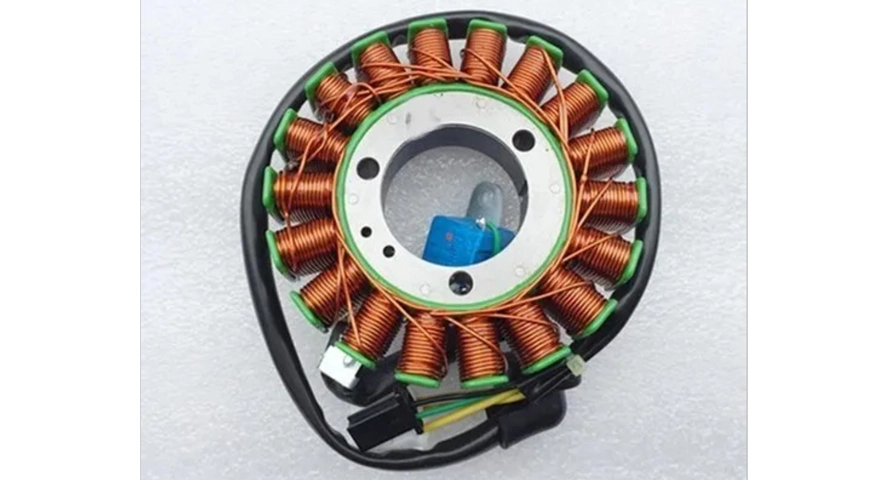

Polyester imine copper clad aluminum electromagnetic wire is an electromagnetic wire product that combines economic, lightweight, and high-performance insulation characteristics. It is suitable for various electrical equipment and motor manufacturing fields, and is suitable for occasions with high requirements for insulation performance and heat resistance, such as household appliances, industrial motors, transformers, automotive motors, etc.
| Enameled Type | Modifided Polyester | Polyurethane | Polyester-imide | Polyamide-imide | Anealed |
| Insulation Type | PEW (G)/155 | UEW/155 (180) | EIW/180 | EI-AIW/200 | Anealed |
| Thermal Class | F | F/H | H | C | Anealed |
| Conduct | CCA | CCA | CCA | CCA | CCA |
| Size (mm) | 0.19-1.30 | 0.08-1.30 | 0.19-1.30 | 0.19-1.30 | 1.00-5.50MM |
| Coating Thickness | Grade (1, 2) | Grade (0, 1, 2) | Grade (1, 2) | Grade (1, 2) | NONE |
| Standard | GB 6109.4-88 IEC 60317-4 JIS C 3202.6 MW75-C SJ/T11223-2000 | GB 6109.4-88 IEC 60317-4 JIS C 3202.6 MW75-C SJ/T11223-2000 | GB 6109.4-88 IEC 60317-4 JIS C 3202.6 MW75-C SJ/T11223-2000 | GB 6109.4-88 IEC 60317-4 JIS C 3202.6 MW75-C SJ/T11223-2000 | SJ/T11223-2000 |
The characteristics of polyester imine copper clad aluminum enameled wire:
1. Cost effectiveness: Copper clad aluminum conductors combine the excellent conductivity of copper with the lightweight characteristics of aluminum, which can significantly reduce costs and weight compared to all copper conductors.
2. High temperature resistance: Polyester imine insulation paint can withstand temperatures up to 180 ° C to 220 ° C, suitable for applications in high temperature environments.
3. Excellent insulation performance: Copper coated aluminum wire provides excellent electrical insulation performance, can maintain stability under high voltage, and is suitable for strict electrical applications.
4. Chemical stability: Polyester imine insulation paint has good resistance to various chemicals, including some solvents and cleaning agents, and is suitable for situations with high chemical environment requirements.
5. Mechanical strength: Polyester imine insulation paint also provides good mechanical strength, which helps improve the durability and reliability of the wire.
