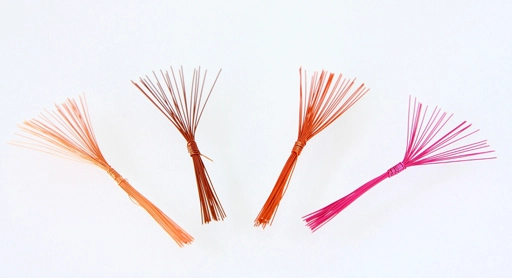

Polyurethane Film Insulated Round Copper Magnet Wire (F and H Thermal Class)

Name: Polyurethane Film Insulated Round Copper Magnet Wire (F and H Thermal Class)
Brand: XUANCHENG RONGDA ELECTRICAL TECHNOLOGY CO., LTD.

0.05-0.10mm fine copper enameled wire, due to its small diameter and excellent electrical performance, is widely used in various high-precision and strict requirements fields. The following are some main uses:

1. Micro motors and electric motors

2. Micro transformers and high-frequency transformers

3. Headphones and speakers

4. Electromagnetic coils: In relays, solenoid valves, and other electromagnetic equipment, fine copper enameled wires are used to manufacture miniaturized electromagnetic coils

Get A Quote

Specification of Polyurethane Film Insulated Round Copper Magnet Wire (F and H Thermal Class)

Coating	Polyurethane
Product Type	UEW/180, PUR/180, QA/180	UEW/155, PUR/155, QA/155
Thermal	H 180	F 155
Size range	0.05-0. 50MM	0.05-1 50MM
Standard	IEC60317-51. MW82-C, GB/T6109.23	IEC60317-20, MW79-C, GB/T6109.10

Features of Polyurethane Film Insulated Round Copper Magnet Wire (F and H Thermal Class)

1. Size of ultra-fine conductors

2. Excellent electrical performance

This type of enameled wire uses pure copper wire rods, enameled copper wire ensuring effective current transmission and low resistance loss.

3. Excellent mechanical strength and flexibility

The flexibility of the polyurethane insulation layer makes it easier to handle enameled wires during winding and installation processes.

4. Direct weldability

This type of enameled wire is designed to be directly solderable, which greatly simplifies the manufacturing and maintenance process of electronic components.
